INCLUDES:
• (1) Step Drill Bit

FEATURES:
• Step Drill Bit has 2 spiral flutes to remove chips and help pull the bit through material for faster cutting
• Titanium nitride coating dissipates heat for longer bit life

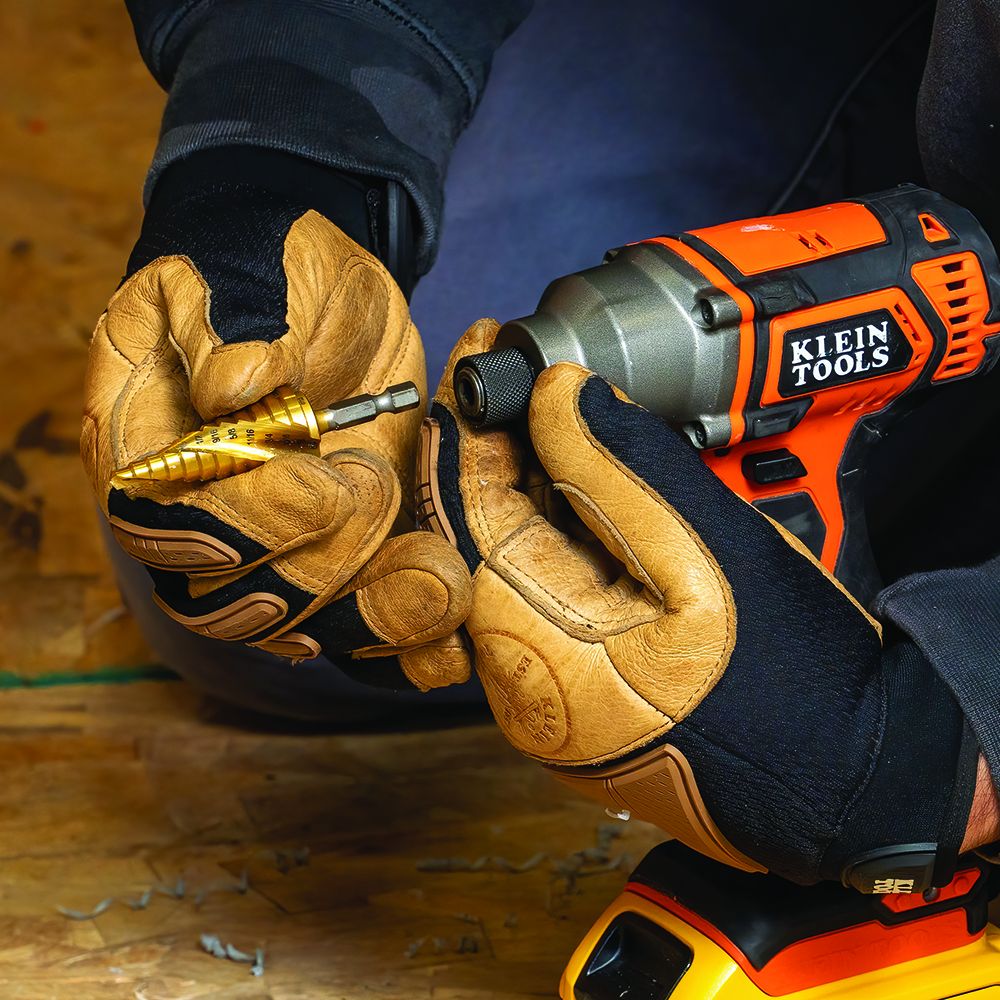

• 1/4-Inch hex shank for firm, positive grip in impact driver and standard drill
• Split point tip quickly starts hole cuts and prevents drifting when pressure is added
• Laser-etched hole size markings for quick size identification
• For use on steel (up to 16 gauge), wood, plastic, and aluminum
• 9 hole sizes

SPECIFICATIONS:
• Size: 1/4" to 3/4" (6.4 to 19.1 mm)
• Shank Type: 1/4" Hex
• Flute Type: Spiral
• Number of Holes: 9
• Increment: 1/16" (1.6 mm)
• Type: Step Drill Bit
• Quick Reference: #3
• Material: High Speed Steel
• Special Features: TiN Coating, Impact Shaft, Dual Spiral Fluting
• Application: Multi-Material Drilling
• Overall Length: 0.75" (1.9 cm)
• Overall Width: 0.75" (1.9 cm)
• Overall Height: 2.82" (7.2 cm)
• Weight: 1.76 oz (50 g)


Dual Spiral Flutes on VACO Step Drill Bits help pull the step bit through the material for faster cutting. The Titanium Nitride coating extends life of the cutting edge. Convenient to use with an impact driver and drill, the 1/4-Inch hex shank provides a firm, positive grip. Available in five step bit sizes with commonly used hole sizes for steel (up to 16 gauge), plastic, aluminum, and wood.
