INCLUDES:
• (1) Chicago Grip

FEATURES:
• Identical to Bell-System type ''H'' strand puller
• Double V jaw securely pulls steel strand cable
• Max Safe Load of 15,000 lb (6803 kg)
• Equipped with chain, toggle and shackle
• Outside diameter of support wire includes thickness of polyethylene coating
• For support wire 0.134 and larger, refer to 1659 series

SPECIFICATIONS:
• Type: "H" Strand Puller
• Special Features: Equipped with a Chain, Toggle and Shackle
• Cable Type: Steel Strand
• Cable Diameter: 0.31" to 0.62" (8 to 16 mm)
• Jaw Type: Double V
• Jaw Length: 7.25" (18.4 cm)
• Maximum Safe Load: 15000 lb (6803 kg)
• Weight: 15.8 lb (7.17 kg)

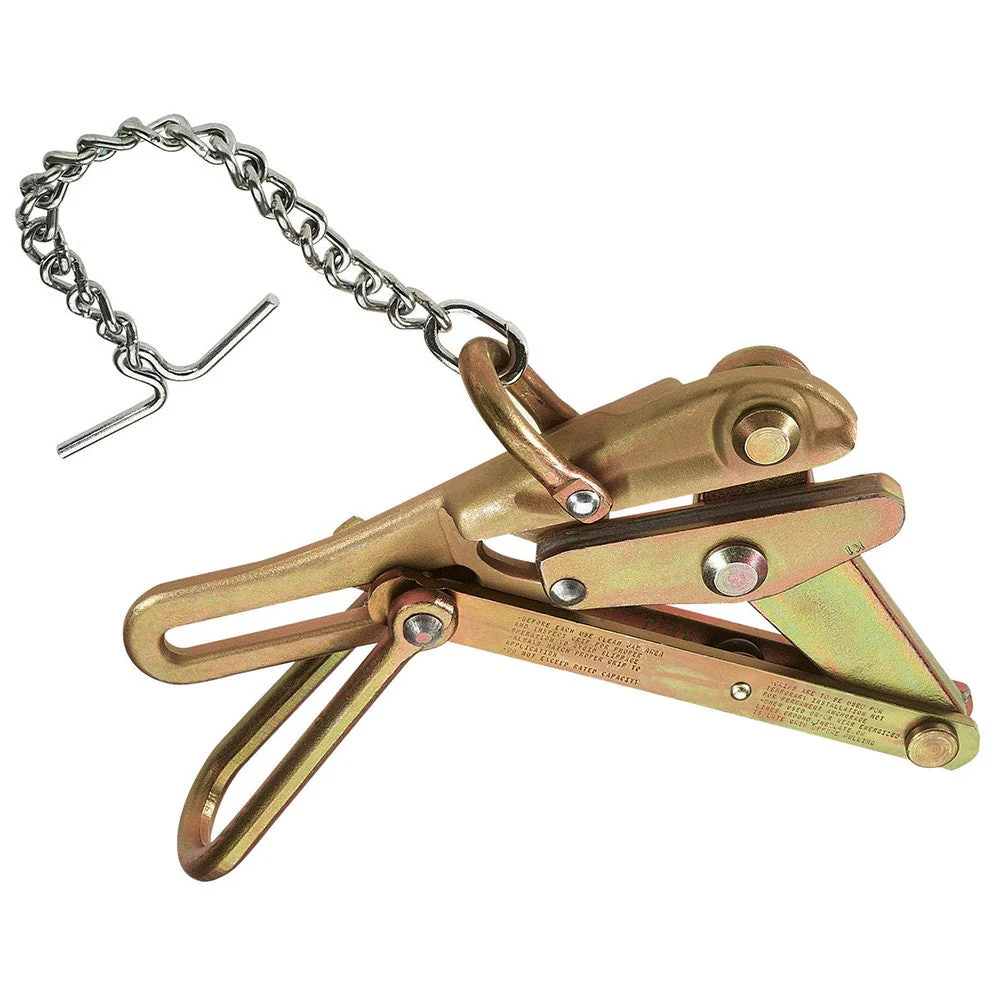

The Klein Tools 1628-16AT Chicago Grip is identical to a Bell-System type -InchH-Inch Strand Puller. It is equipped with a chain, toggle and shackle to keep the grip from falling off the cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
