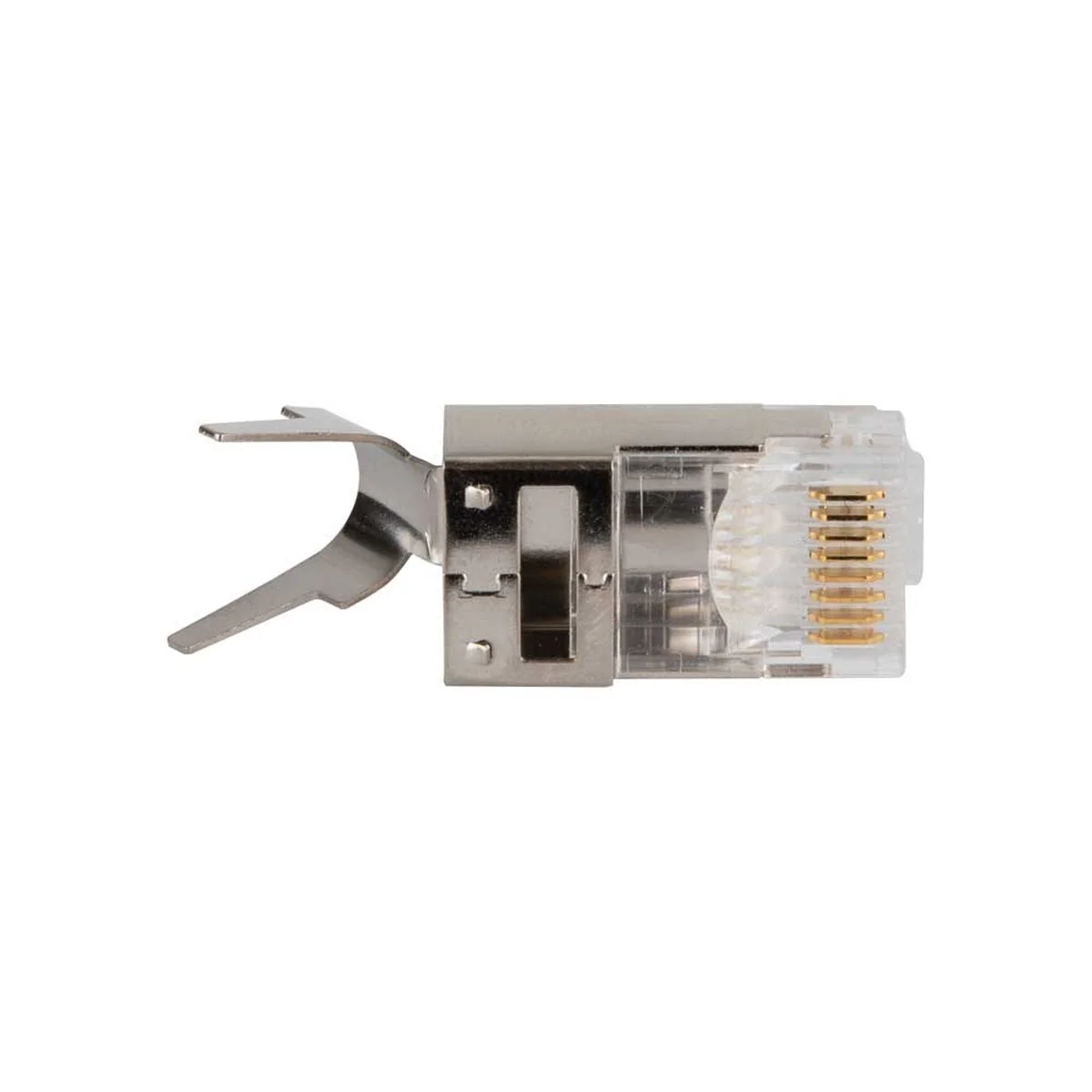

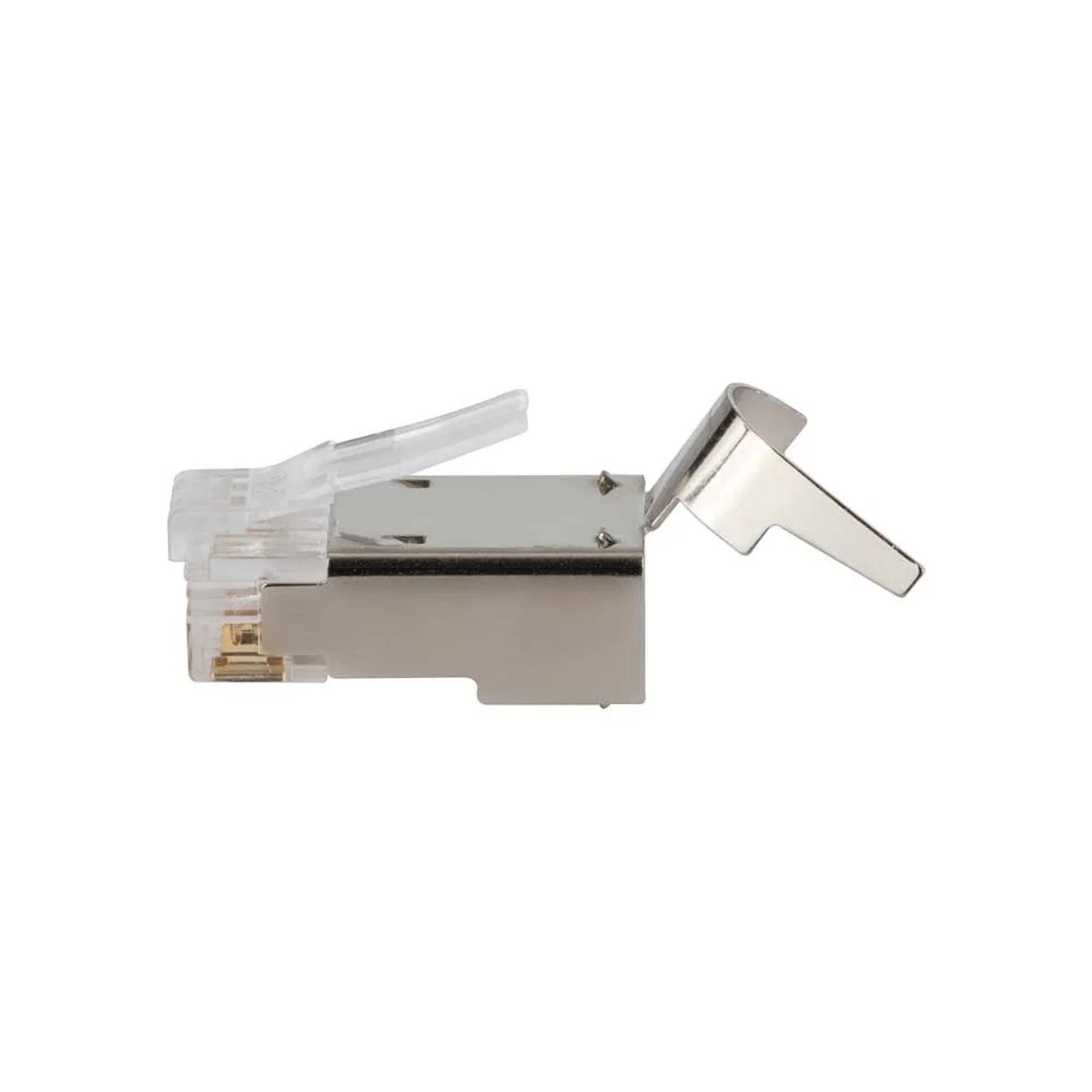

Klein VDV826-705 Pass-Thru Modular Data Plugs, RJ45 CAT6A, Shielded (50 Pack)
Klein VDV826-705 Description
Shielded RJ45 CAT6A pass-thru data plugs for solid or stranded cable enable fast, reliable terminations with visual wire-order confirmation; compliant with PoE/PoE+ and ideal for larger diameter CAT6 and CAT6A STP cables.
Klein VDV826-705 Includes
- (50) RJ45 CAT6A Shielded Pass-Thru Modular Data Plugs
Klein VDV826-705 Features
- Pass-Thru design to verify wire order before crimping
- For CAT6A STP and larger-diameter CAT6 cable
- Compliant with PoE and PoE+ standards
- 8P8C contacts; works with solid or stranded wire

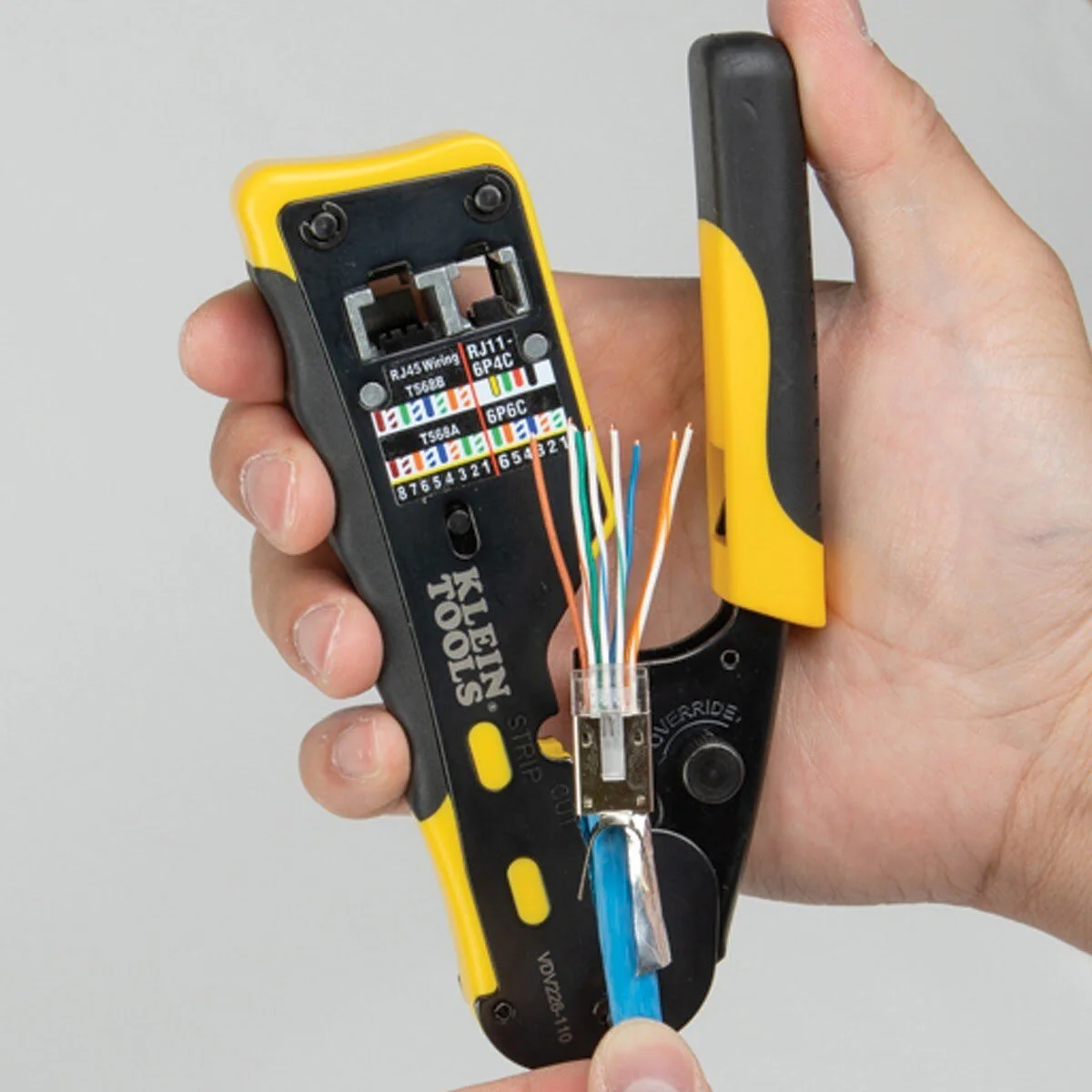

- Requires pass-through type crimper (VDV226-110 recommended)
- 50 micro-inch gold-plated contacts
- Category 6A performance per TIA/EIA-568-B.2
Klein VDV826-705 Specifications
| Connector Type: | RJ45 (8P8C) |
| Cable Compatibility: | CAT6A STP and larger diameter CAT6 |
| Package Quantity: | 50 |
| Max Conductor Diameter: | 0.043 inch (1.1 mm) |
| Material: | PVC plastic with gold-plated contacts; shielded housing |
| Overall Length: | 0.8 inch (2 cm) |
| Overall Height: | 0.6 inch (1.5 cm) |
| Overall Width: | 0.4 inch (1 cm) |
| Weight: | 6.05 oz (171 g) |
$99.99
Klein VDV826-705 Pass-Thru Modular Data Plugs, RJ45 CAT6A, Shielded (50 Pack)—
$99.99
