INCLUDES:
• (10) Modular Data Plugs

FEATURES:
• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications
• CAT6 Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
• Thick 50µ inch gold plating on all contact surfaces
• Meets or Exceeds all PoE and PoE+ requirements for performance
• Category 6 performance per EIA/TIA B.2. FCC compliant, UL rated, RoHS compliant
• For use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110

SPECIFICATIONS:
• Package Quantity: 10
• Overall Length: 0.875" (22.2 mm)
• Application: Voice and Data
• Stranded Conductor Wire: Yes
• Material: PVC Plastic; Gold Plated Contacts
• Connector Type: RJ45
• Solid Conductor Wire: Yes

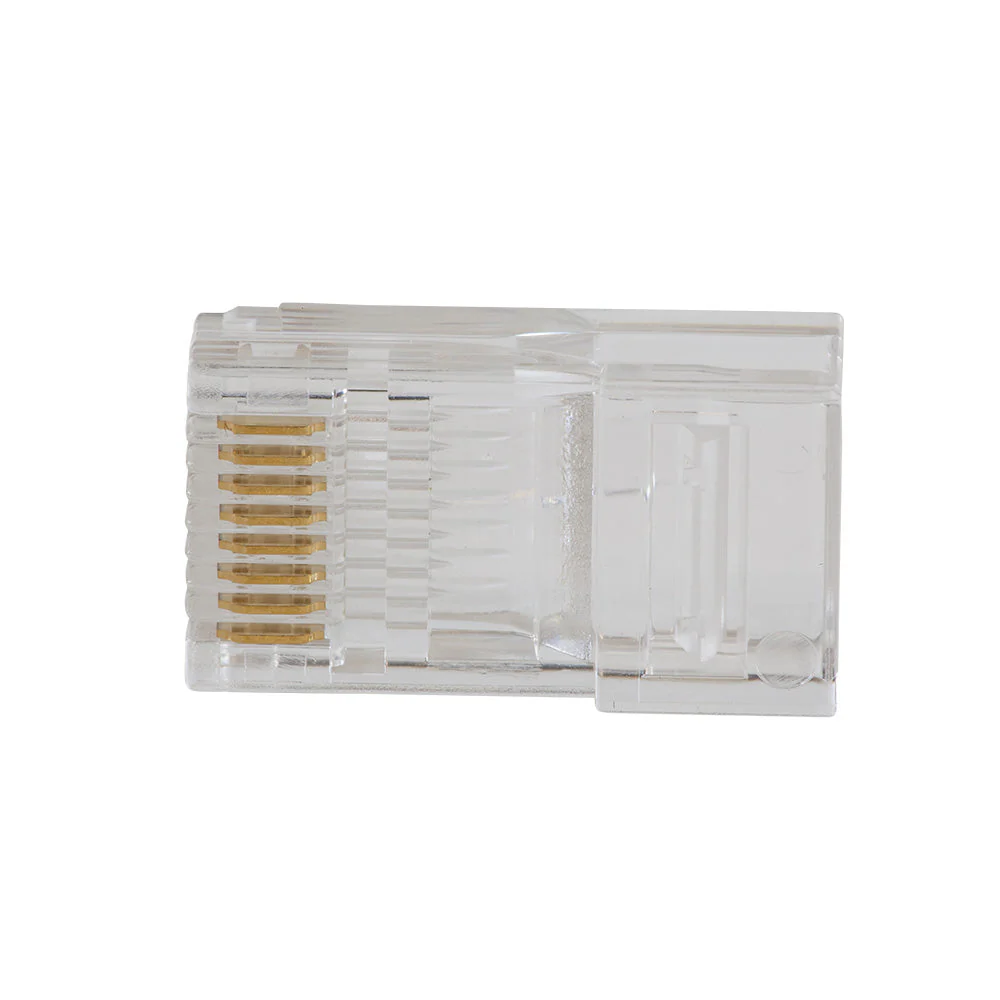

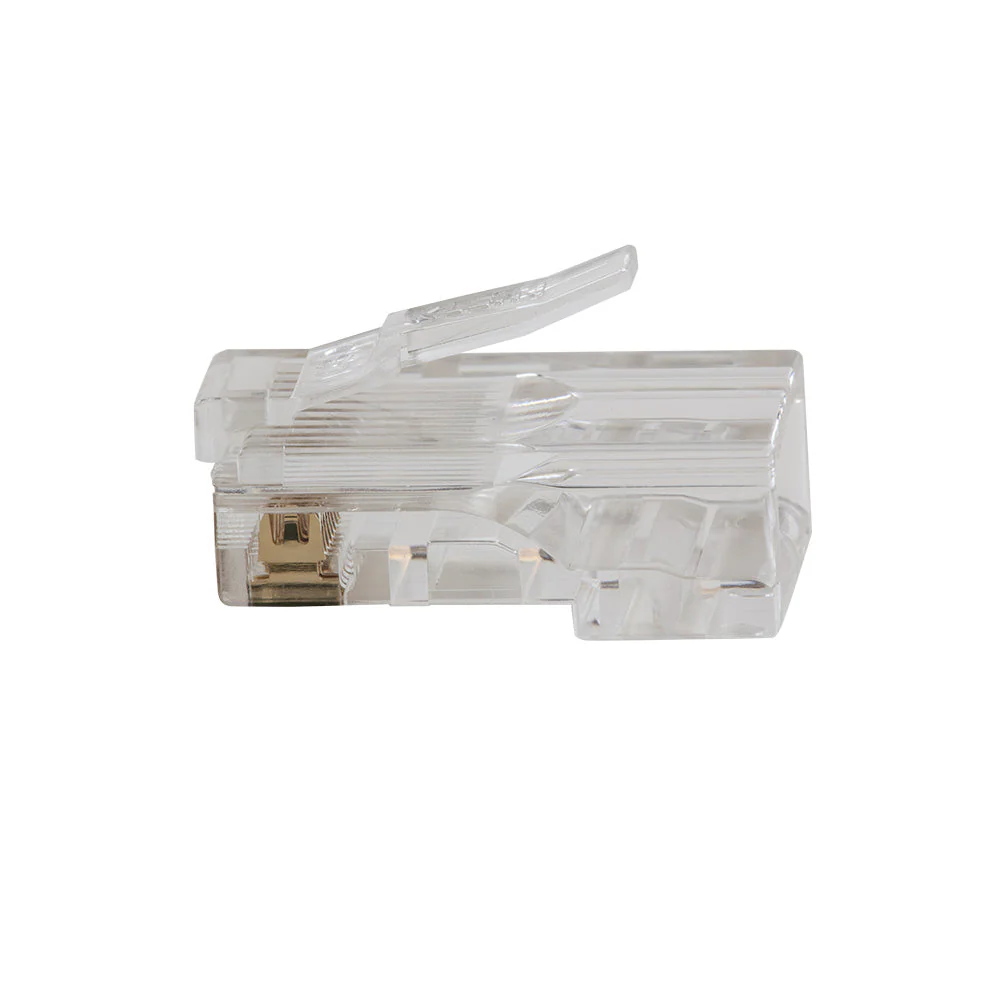

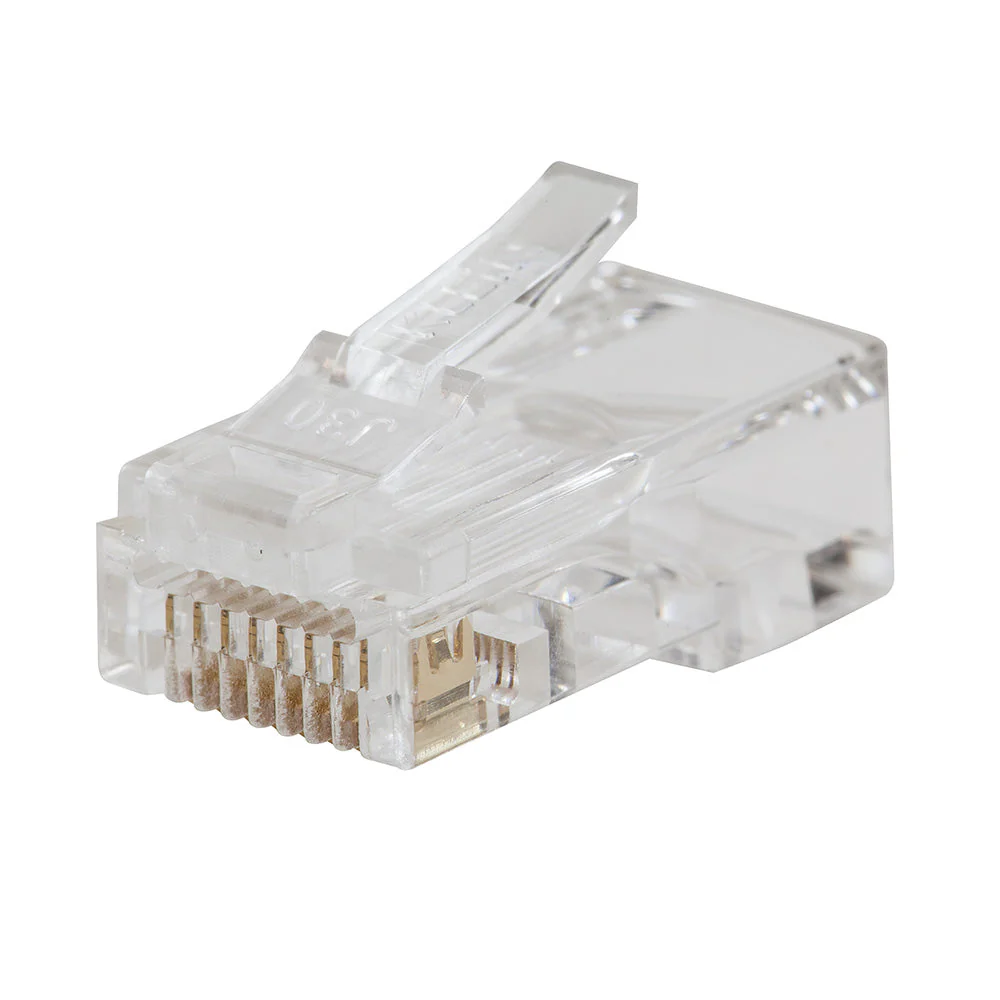

Exclusive Klein-designed Pass-Thru™modular plugs for fast, reliable connector installations for data applications. Cable easily passes through connector for consistent and secure termination. Saves time, trims flush to end face when used with Klein Tools Pass-Thru™ Modular Crimper VDV226-110, and eliminates wasted materials. These CAT6 connectors are fully compliant with all PoE standards. Use with Klein Tools Pass-Thru™ Modular Crimper, VDV226-110.
