Description:

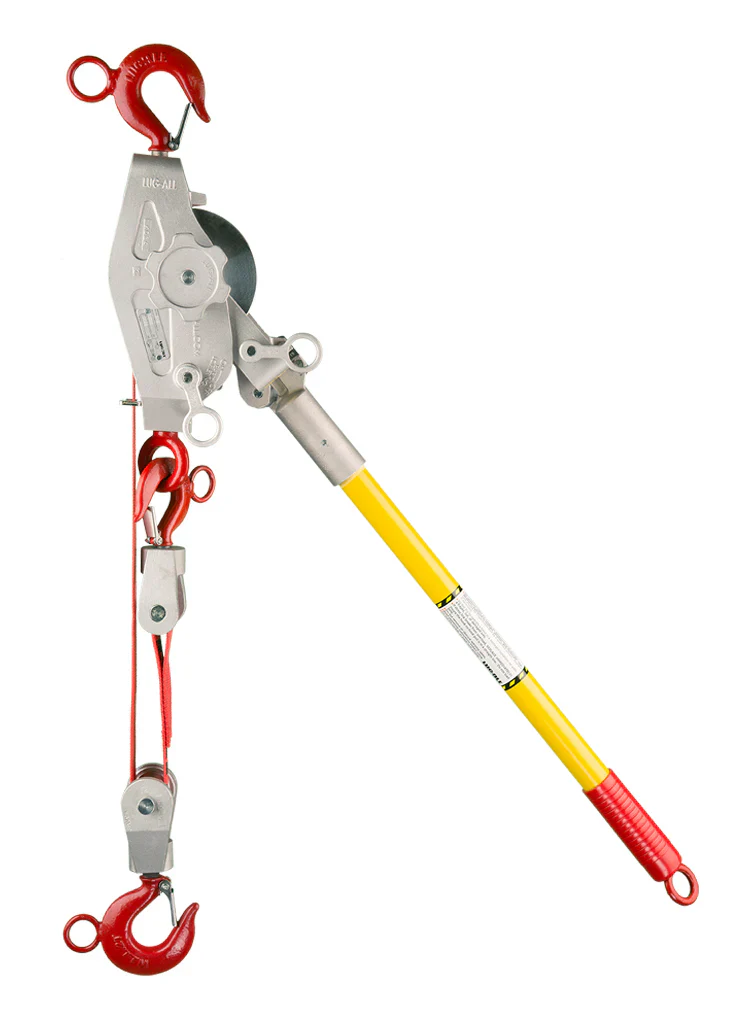

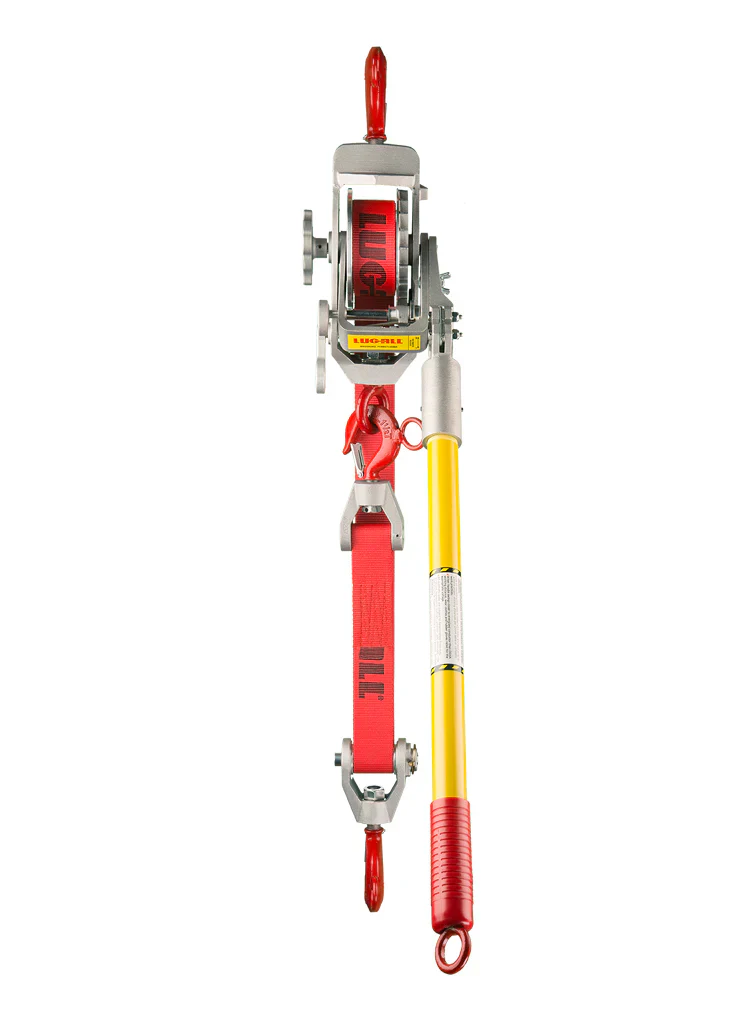

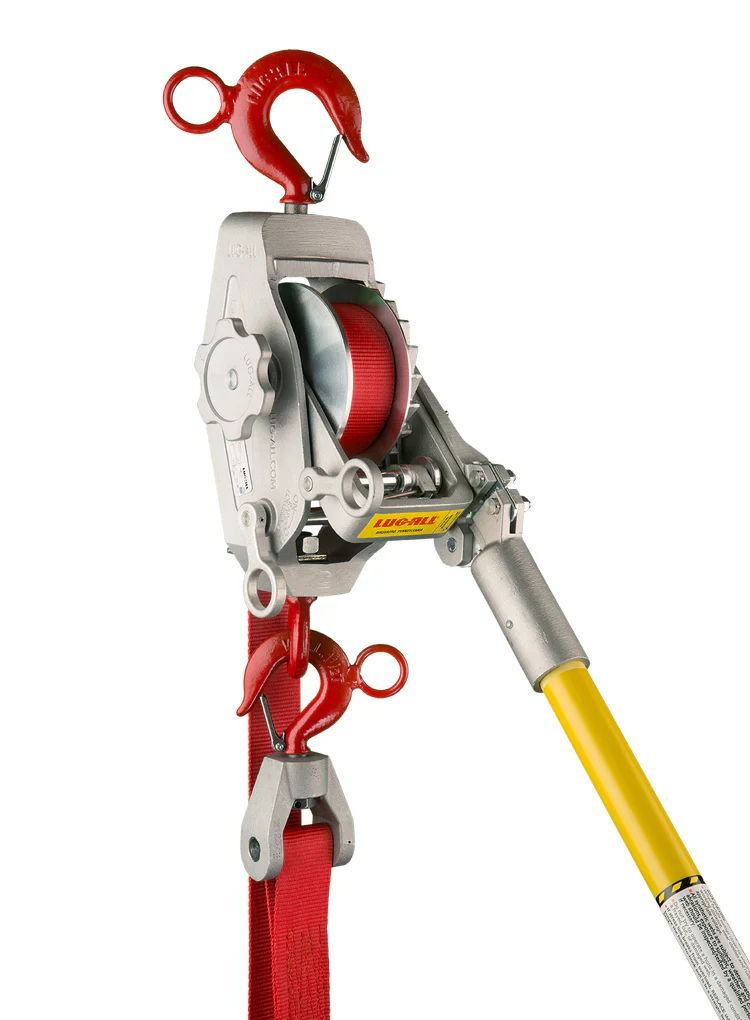

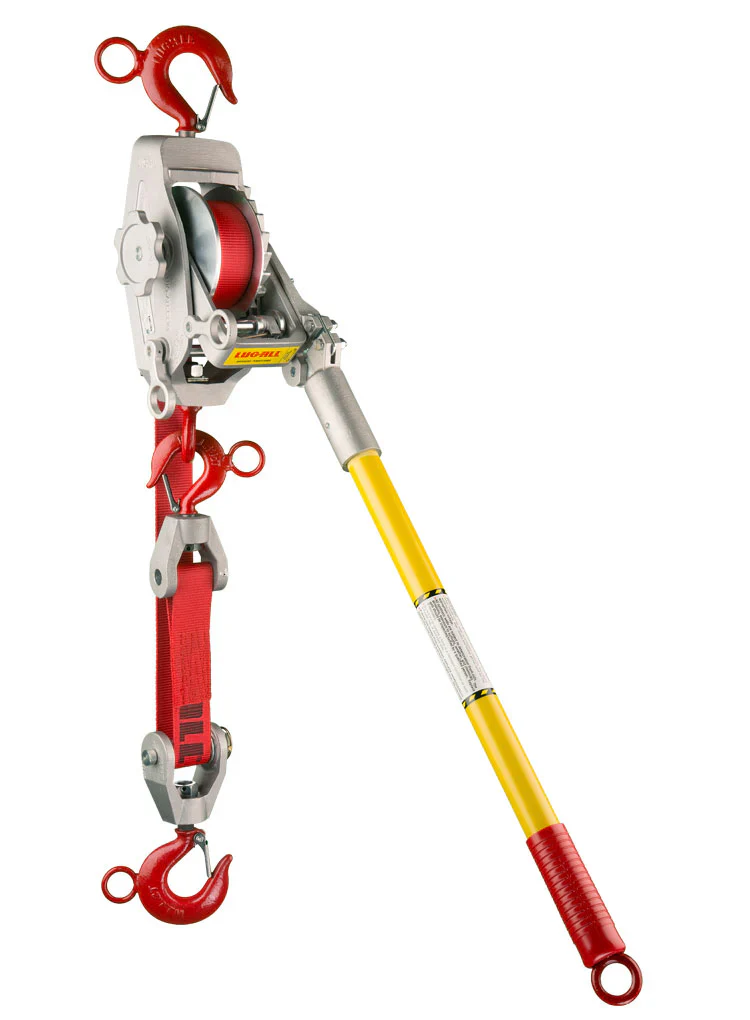

The Lug-All model 2-B is an industrial-grade 1-ton web strap come along ratchet winch hoist featuring double or single line lift capabilities. This web strap hoist also includes hot-stick rings for electrical lineman work. When used as a single line hoist, this model has 10 feet of web strap and a 1,000-pound capacity. As a double line hoist, this model has 5 feet of web strap and a 2,000-pound capacity. All Lug-All web strap hoists are made in the USA and are designed with a double flanged drum to protect the strap. Lug-All web strap hoists also include stress links on the handle that break when the hoist becomes overloaded, protecting the user and equipment.

Specifications:

Part Number 3-HB Capacity 1 1/2 Ton Net Weight 14 1/2 LBS Double Line Capacity 3000 LBS Double Line Lift 5 FT 6 IN Single Line Capacity 1500 LBS Single Line Lift 11 FT



 Lug-All Operating Instructions
