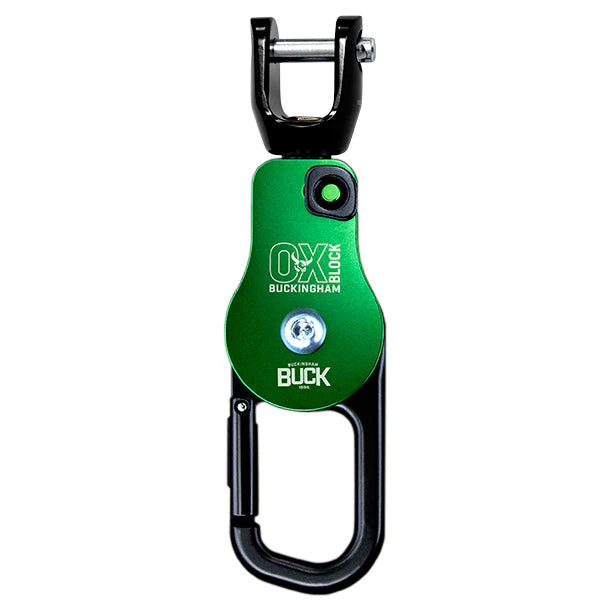

Buckingham’s OX BLOCK™ Clevis Top with the newest addition, the Buck Pin. The original design featured a shoulder bolt design which required a ratchet and a hex wrench to remove the lock nut. It also required a new lock nut every time you change accessories, but the Buck Pin makes this process much easier. Now you can simply remove the pin at the press of a button!

*Usually ships within 7 to 14 days.

Tips/hints: If you want to attach something to the clevis while wearing insulated gloves, you could leave the pin engaged in only one hole so that the clevis is open before you put the gloves on. Then you can push it closed easily while wearing the gloves. The pin can be removed with a screwdriver while wearing the gloves, but it is much easier without them.

Product Specifications

Product Number	50063
Product Name	Ox Clevis Top w/ Buck Pin
Material:	Lightweight Aluminum
Length:	10.5"
Width:	2"
Gate Opening Capacity:	1.5"
Weight:	2.15
Adjustable Sling:	No
HOOK TO EYE:
MBS:	6,000 lbs
WLL:	1,500 lbf
SHEAVE TO EYE:
MBS:	10,000 lbs
WLL:	2,500 lbf
OX Block™ Standards:	ASME B30 Compliant
Made In USA?:	Yes
Product Number	223892R
Product Name	Buck Pin
Effective Length (between head and plunger)	1.85"
Overall Length	2.4"
Diameter	1/2"
Weight	2.1 oz
Material	Zinc Plated Alloy Steel
For Use W/	Ox Block w/ Clevis Top
Standards	Pin itself not tested to a standard. Tensile tested in the Ox clevis to our 10,000 lbf MBS for the Ox Block.
Made in the USA	Yes

Instructions & Warnings

OX BLOCK™ Instructions & Warnings

Ox Block Buck Pin Instructions

Buck Pin Retro-Fit Instructions





Ox Block In Use
